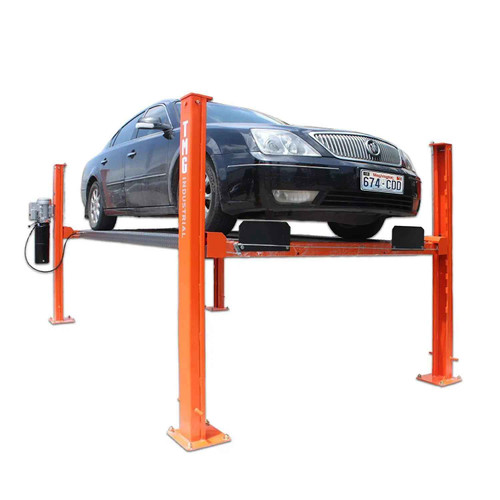

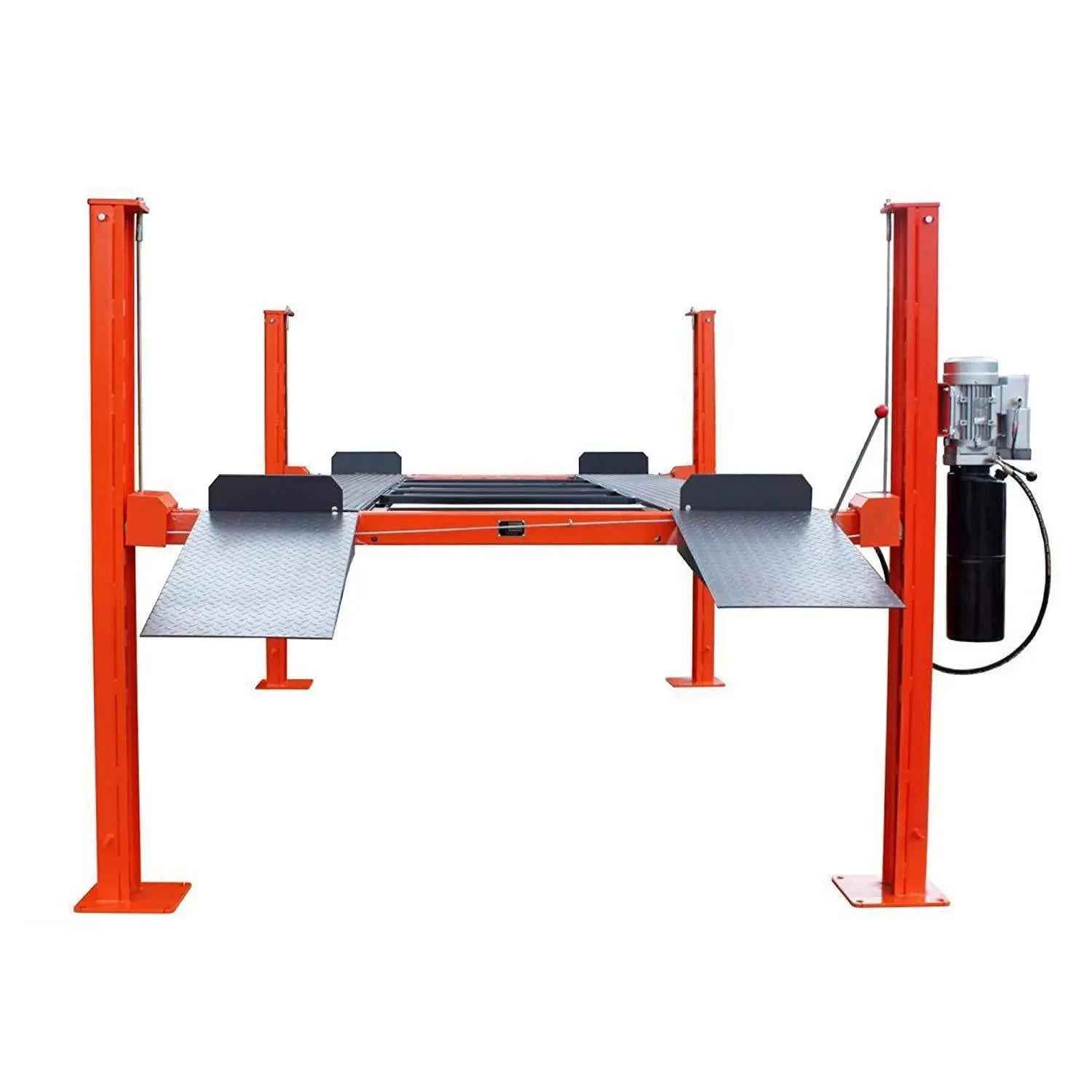

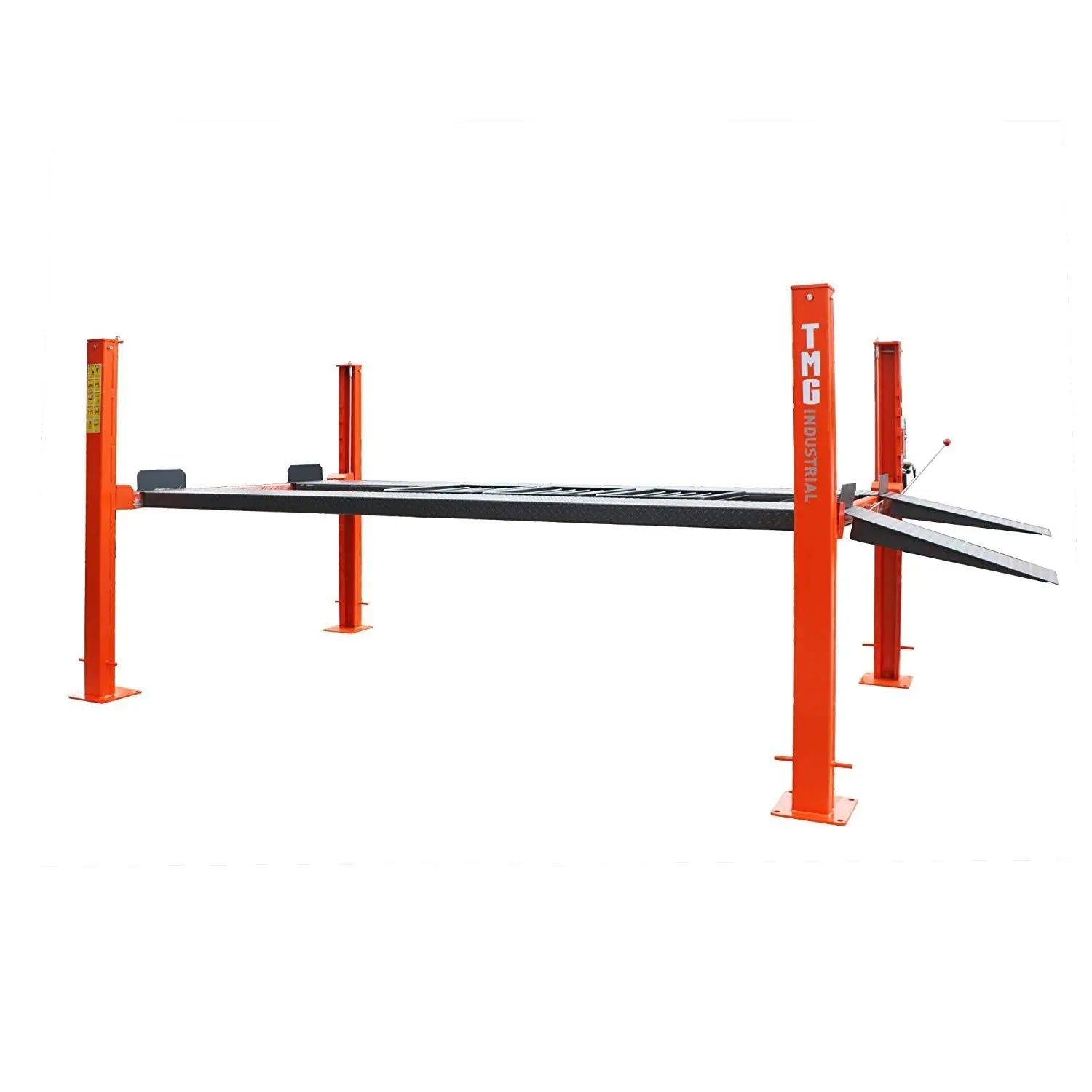

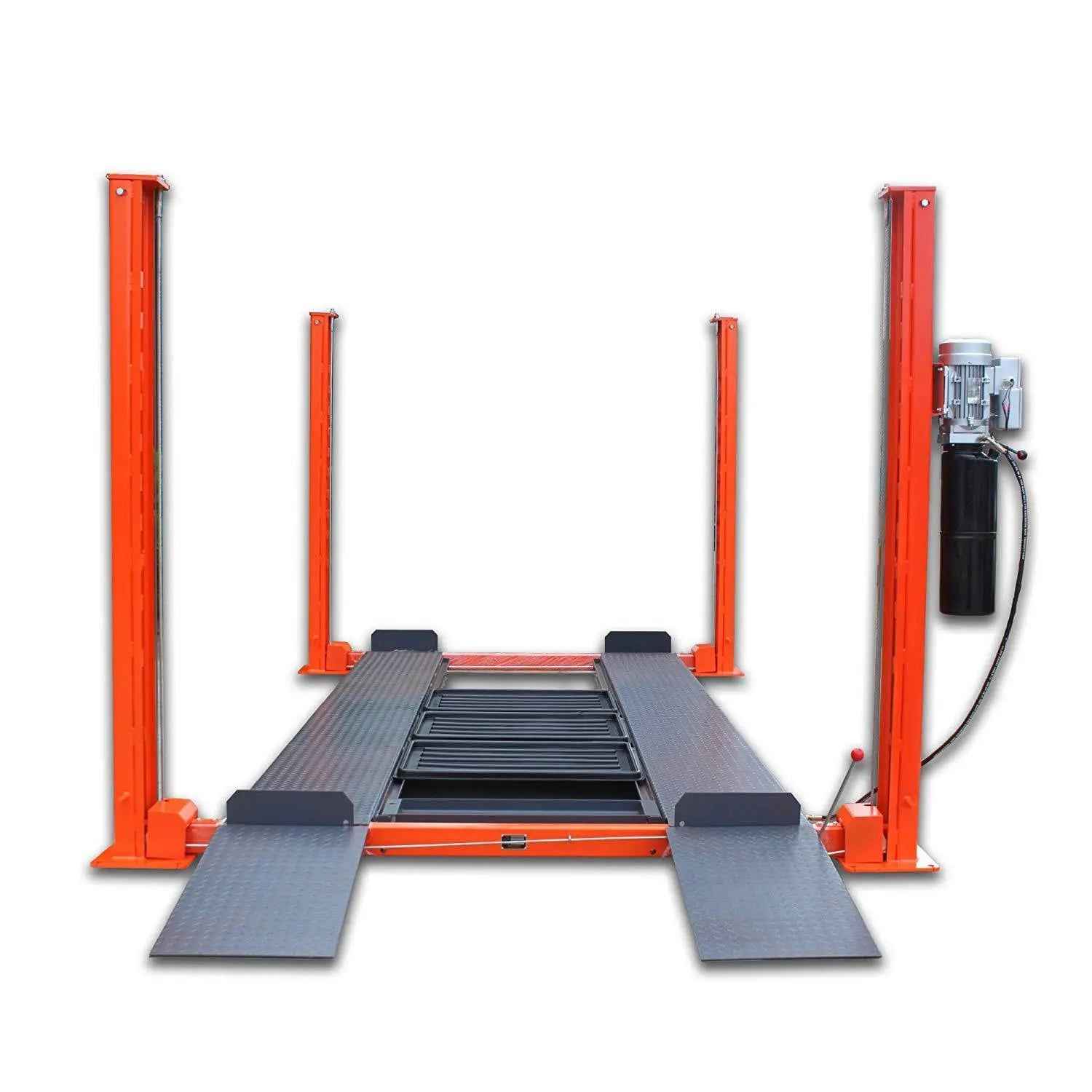

4-Post Auto Lift, 9,000 lb Lift Capacity, 77" Rise, Removable Ramp, CETL Certified Power Unit, TMG-ALF90
Lift built for garages and light-duty shops—store one vehicle above another or handle routine service work with a stable, proven platform.
Specs
- Max lift capacity: 9,000 lb
- Max lift height: 77"
- Max clearance under runways: 73"
- Lock ladder column design
Overall dimensions
- Overall length: 207" (with ramps), 175" (without ramps)
- Outside column width: 105" (without motor), 117" (with motor)
- Length between columns: 160"
- Width between columns: 92"
- Column height: 84"
Column construction
- Column frame size: 6" x 2.75"
- Column base: 12" x 12"
- Steel thickness: 8 gauge

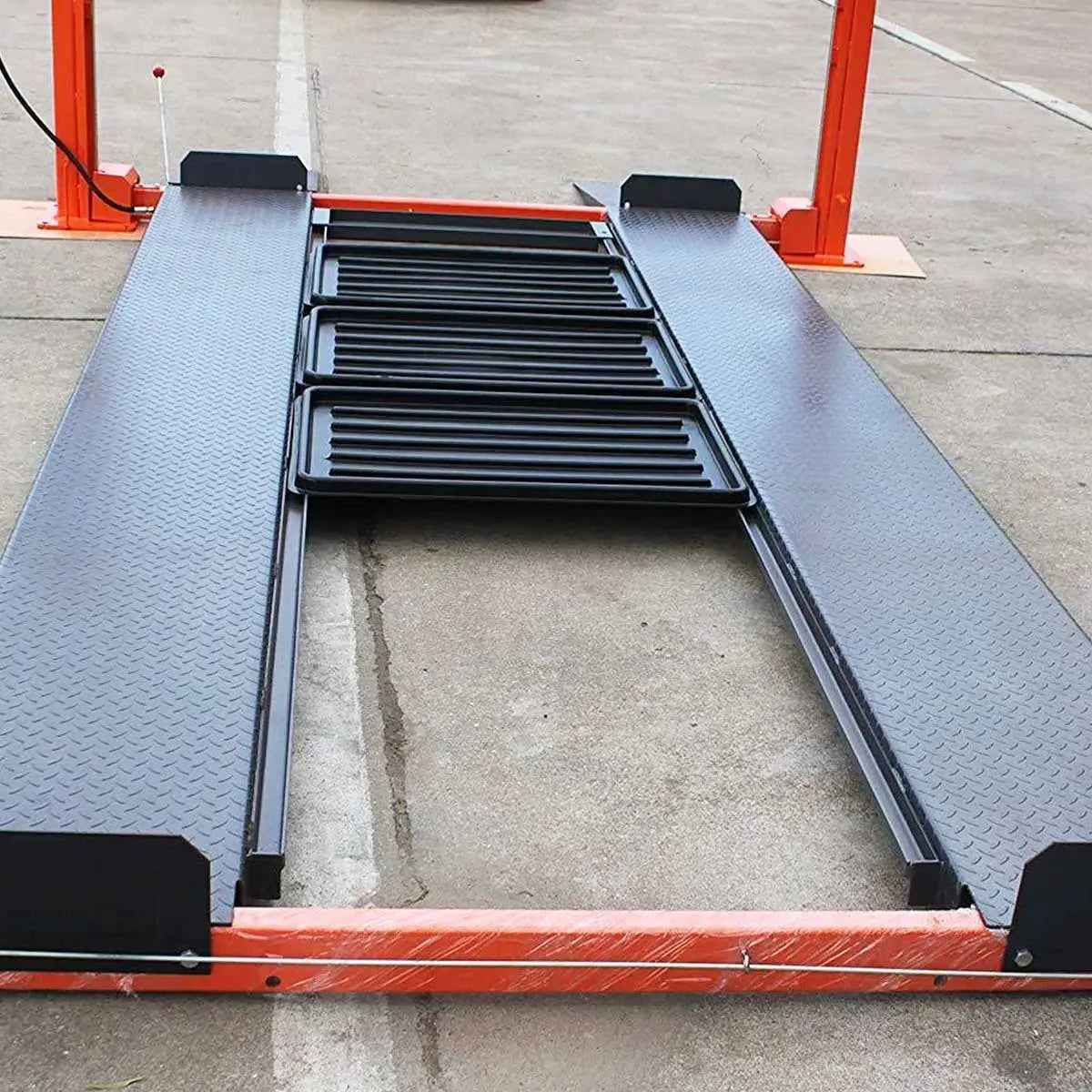

Runways
- Runway length: 165"
- Runway width: 18.5"
- Runway thickness: 2"
- Top plate thickness: 1/2"
- Runway height from ground: 4.5"
- Width between runways (outside): 75"
- Width between runways (inside): 37.5"
Cables
- Steel cable diameter: 3/8"
Engine
- 3 HP electric motor
- 220V AC power
- Single-phase
- No-load speed: 3360 RPM
- Working pressure: 2600 PSI
- Hydraulic oil: AW32 / AW46
- Tank capacity: 2.5 gallons
Good for
- Home garages needing stacked vehicle storage
- Light-duty automotive shops
- Cars, trucks, SUVs
- Oil changes, inspections, general maintenance
Not for
- Commercial high-volume service shops
- Vehicles over 9,000 lb
- Low ceiling garages (verify clearance before purchase)
Shipping & delivery
- Ships via freight (LTL)
- Processing time: ~7 business days
- Delivery time: ~5–10 business days after shipment
- Ships from: Kent, Washington
- Crate size: 167" x 20" x 29"
- Shipping weight: ~1,540 lb
- Ships in metal crate
- Forklift or unloading plan required
Warranty
- 1-year manufacturer warranty
