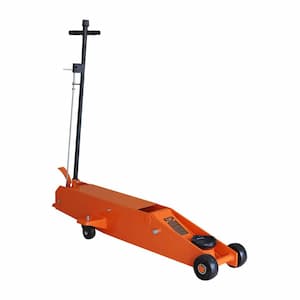

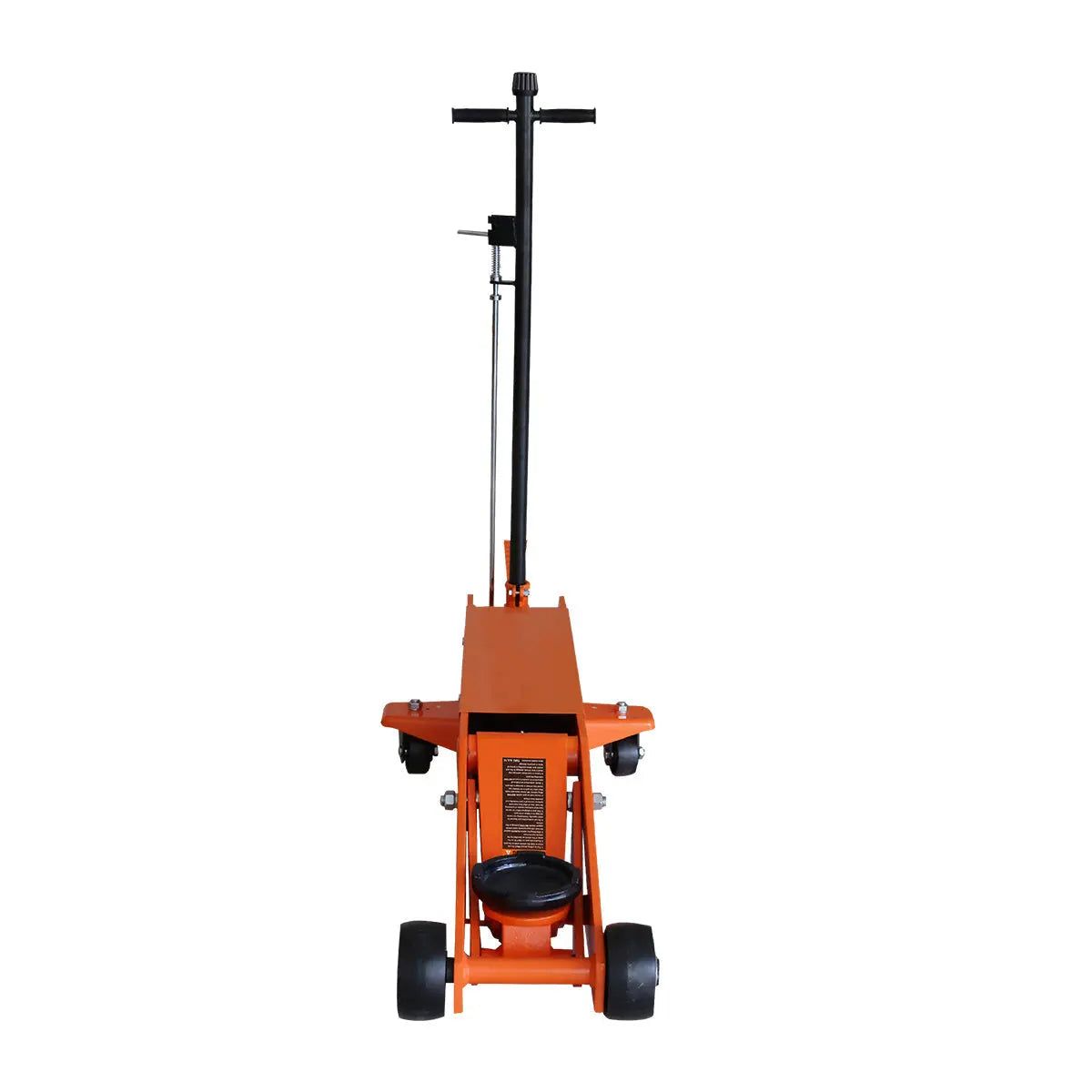

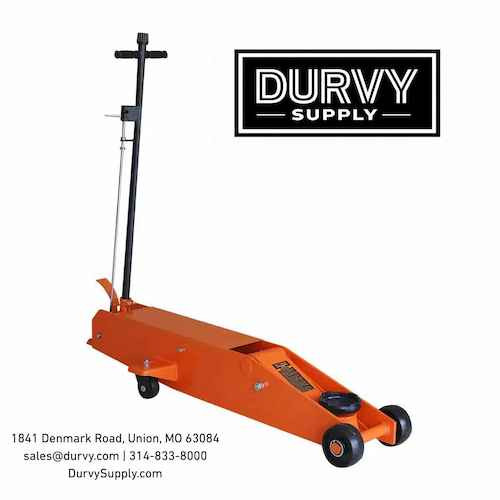

10 Ton Jack. The TMG-AJL10 10 Ton Long Reach Chassis Service Jack is built for fleet service, maintenance shops, and serious equipment lifting. With 22,000 lb capacity, a low 6-1/2" minimum height, and a 22" maximum lift, it reaches under vehicles easily and lifts smoothly and safely.
Designed with twin pistons for faster lift and a controlled lowering function for safety.
Specs
Capacity: 10 ton (22,000 lb)
Min Height: 6-1/2" (160mm)
Max Height: 22" (560mm)
Required Ground Clearance: 6-1/2" (160mm)
Product Size: 61" × 19" × 10"
Net Weight: 284 lb
Material: All steel
Finish: Orange + black
Features
Twin piston hydraulic system for faster rising action
Sealed cast iron pump base for durability

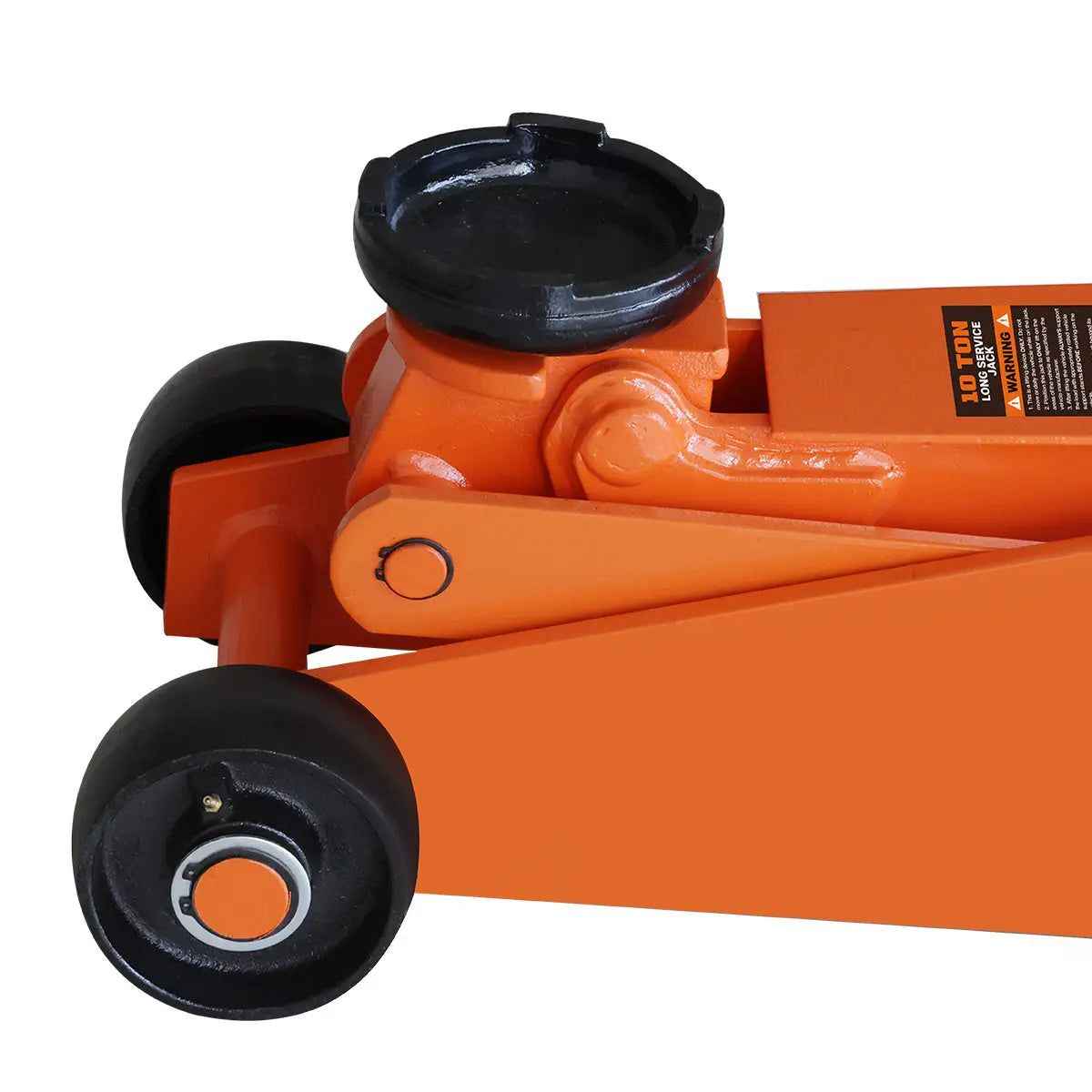

360° pivot rear caster wheels for positioning and maneuverability
Smooth lifting with controlled down function
T-bar handle with:
handle locking mechanism
air release valve
Reinforced structural lifting arm for added strength

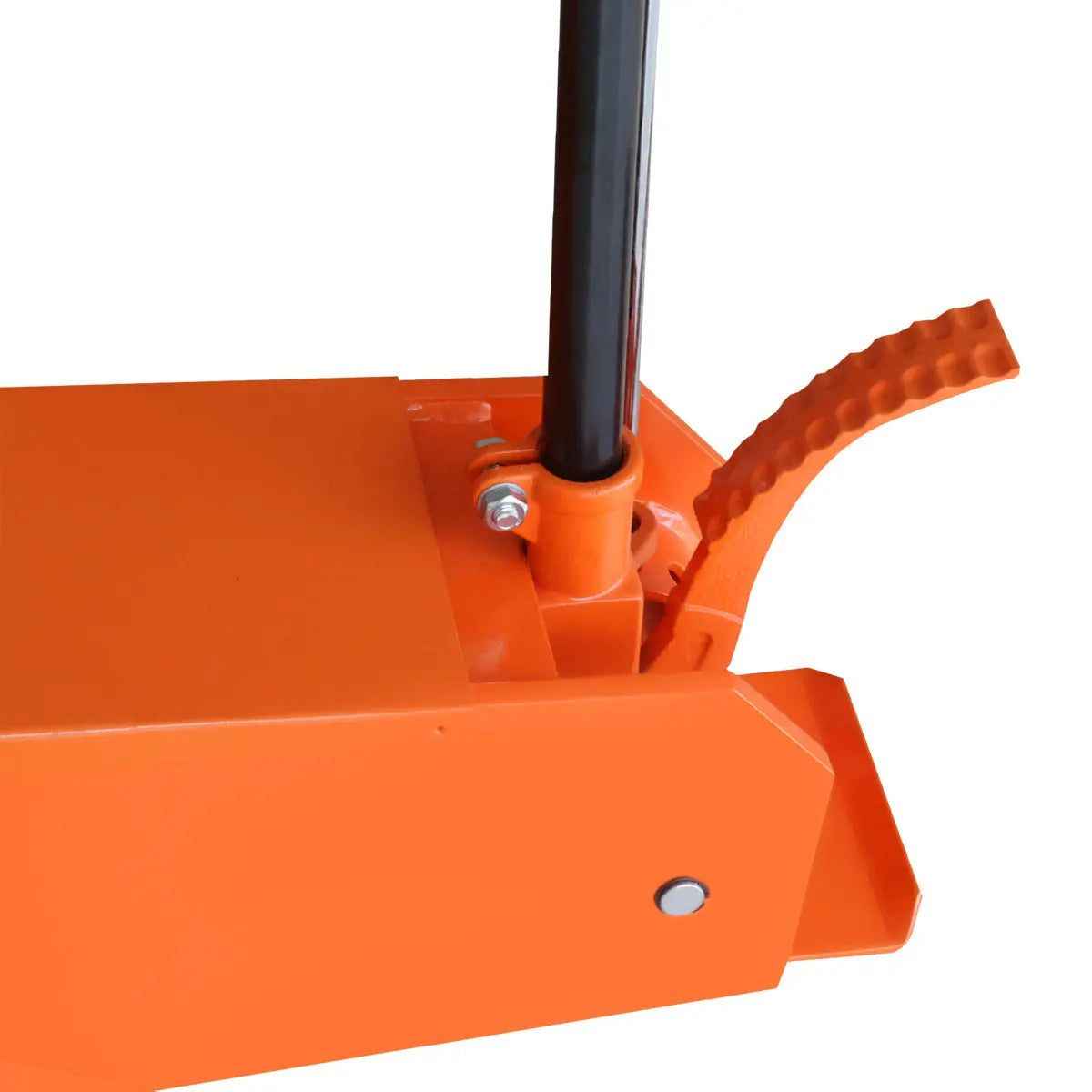

Foot pedal control for easier operation
Good for
Fleet service and maintenance shops
Commercial vehicle service bays
Tire service and undercarriage work
Equipment lifting in barns and industrial shops
Not for
Small passenger cars that don’t have 6.5" ground clearance
Anyone needing a lightweight/portable jack (this is a heavy-duty unit)
Shipping & delivery
This product ships in a wood crate and typically ships from a warehouse in the United States or Canada.
Handling time: 2–3 business days
Delivery estimate: 5–8 business days (location dependent)
Packaged in: wood crate shipping box
Crate dimensions: 67" × 21" × 16"
Shipping weight: 335 lb
Warranty
1 year Manufacturer Warranty
